Instrument Transformer Characteristic Tester

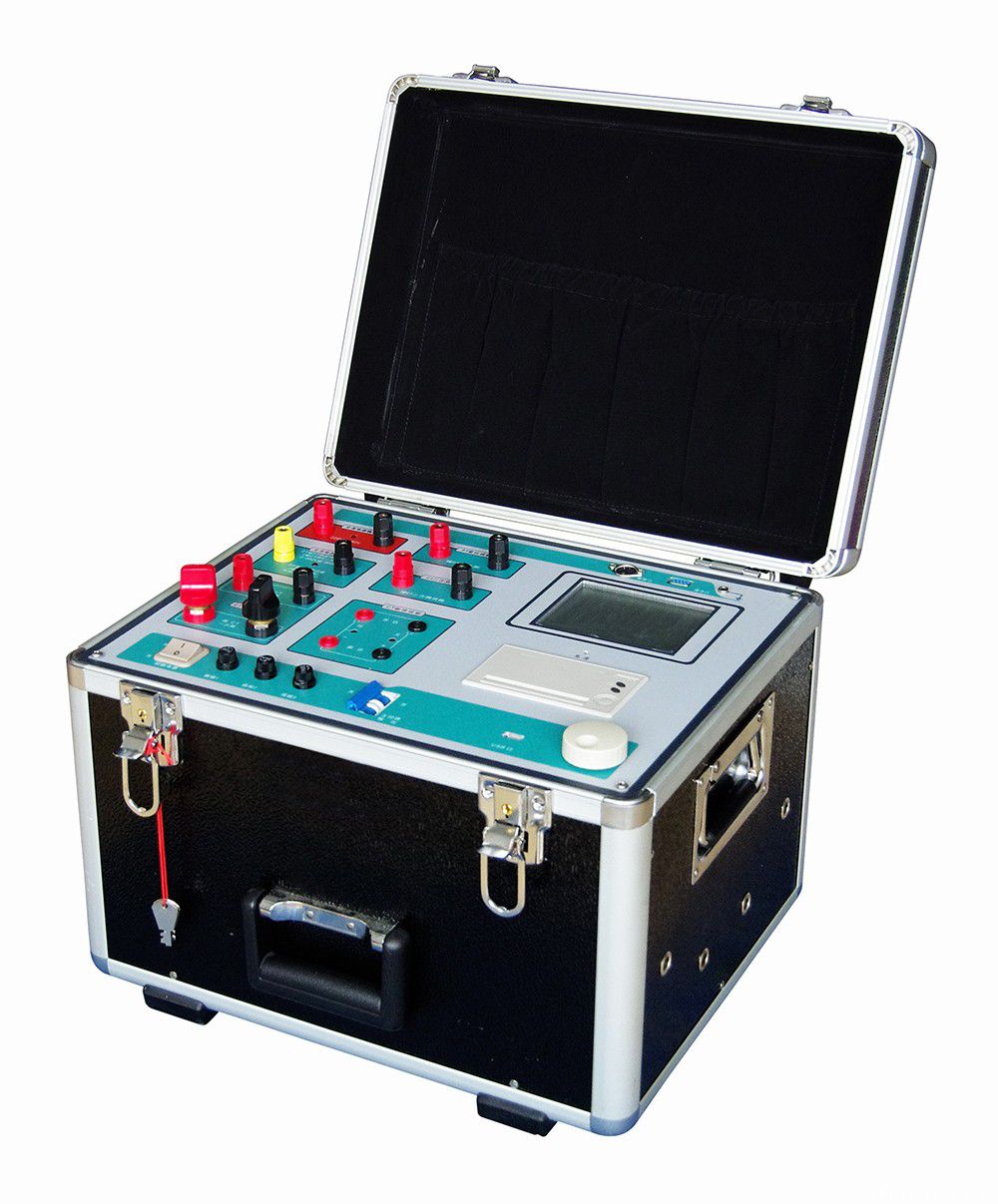

CT/ PT Characteristic Tester VAFA103

CT/ PT Characteristic Tester

VAFA103 CT characteristic tester is a fully automated CT/PT characteristic tester. It is a specialized tester for relay protection and high voltage insulation. The instrument can complete tests include: CT volt-ampere characteristic test, CT variable ratio polarity test, CT polarity test, CT primary current test, PT volt-ampere characteristic test, PT variable ratio polarity test, PT polarity test, automatic calculation of inflection point voltage-current value, variable ratio difference value, 5% or 10% error curve value, etc.

+86 137 6011 6541

sales@va-tek.com

Descriptions
Specifications
Download
Video

Descriptions

1. Easy setting, the device boost voltage and automatically plot the volt-ampere characteristic test curve, eliminating the tedious work of manual voltage regulation, manual recording and curve tracing automatically.
2. It tests volt-ampere characteristics, variable ratio and polarity of CT or PT, error curve of 10%, angle error and ratio error.
3.External booster expands the output voltage range.
4. Volt-ampere characteristic test: single machine output voltage 0-2500V, current 0-20A; using the external booster output voltage 0-4000V, current 0-1.5A, 500KV grade 1A CTs' volt-ampere characteristic test can be done.
5.220V single power input ,avoids the danger of using 380V.
6. Large screen LCD display, direct display of volt-ampere curve when testing, intuitive and convenient. With its own micro printer, it can print test data conveniently.
7. Digital keyboard is used to facilitate digital input.
8.With large capacity memory, it can store 100 sets of test data .
9. S232 communication interface, can connect to the computer for testing; test data can also be uploaded to the computer edit and save.

Specifications

power supply				AC 380 V	AC 220 V	resolution
CT Voltammetry Characteristic test	alone			0～1000 V，0～20 A	0～550 V，0～20A	1mV、1mA
	With external booster			0～2500 V，0～3A		1mV、1mA
CT ratio test	primary current		alone	0～750A		1mA
			With external booster	0～1000A		1mA
	secondary current			0～5 A		1mA
CT Secondary load	secondary current			0～5 A		1mA
	Secondary load			0～4 Ω		0.001Ω
PT Voltammetry Characteristic test	voltage output			0～200 V		1mV
	current output			0～20 A		1mA
PT ratio	primary	alone		0～1000 V	0～550 V	1mV
		With external booster		0～2500 V	0～2500 V	1mV
	secondary voltage			0～100V		1mV
accuracy	Volt-ampere characteristic			< 0.5%
	5% and 10% error curve			< 1%
	ratio			< 0.5%
	Angle difference			< 1%
	Secondary load test			< 0.5%
volume				320×340×320 mm³
weight				38Kg
